The Hamler Tools Sharpening Fixture

Step 3

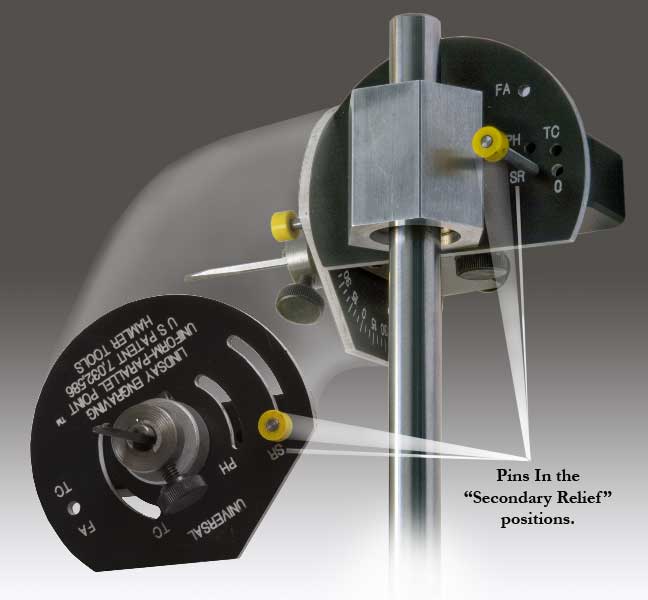

The pins are shown in the "SR" positions.
After grinding one side loosen the locking screw and
rotate the template to do the opposite side of the graver.
This step may not be necessary for numerous resharpenings.
Click for a view of the front side of the fixture.
Click for a view of the opposite side of the fixture.
Step 1 - the "FA" pins
Step 1 Continued - Grinding the Face Angle using the "FA" pin locations.

Step 2 - Top Clearance Removal
Not Illustrated.
Pins are inserted into the "TC" positions.
"TC" is for Top Clearance.

Step 4 - Primary Heel
